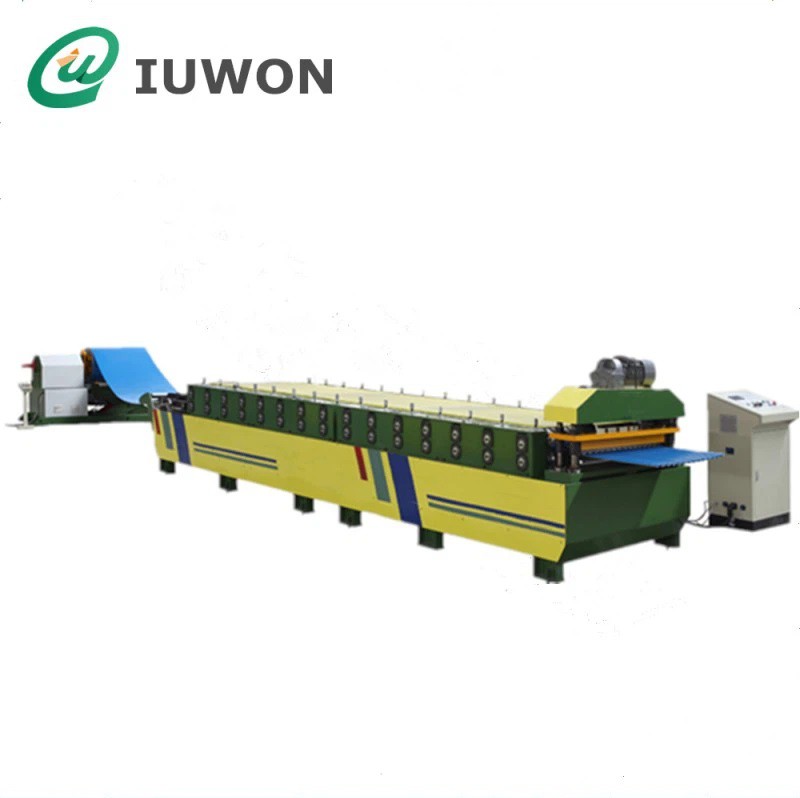

Hanghzou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of corrugated roll machine in China. With abundant experience, we warmly welcome you to buy high quality corrugated roll machine from our factory. Good service and reasonable price are available.
Drawing-Based Custom Design Capability
As a drawing-based roll forming machine supplier, our design process starts from your corrugated sheet drawing.
We analyze wave pitch, wave depth, material thickness, coating type, and production speed requirements, then engineer a complete forming solution optimized for that specific profile.
One drawing corresponds to one optimized corrugated forming system.
Forming Capability
The corrugated roll forming machine can be engineered for:
Standard corrugated roofing sheets
Corrugated wall cladding panels
Symmetrical and asymmetrical corrugation profiles
Custom wave shapes for architectural applications
Compatible materials include GI, PPGI, Galvalume, aluminum, and stainless steel.

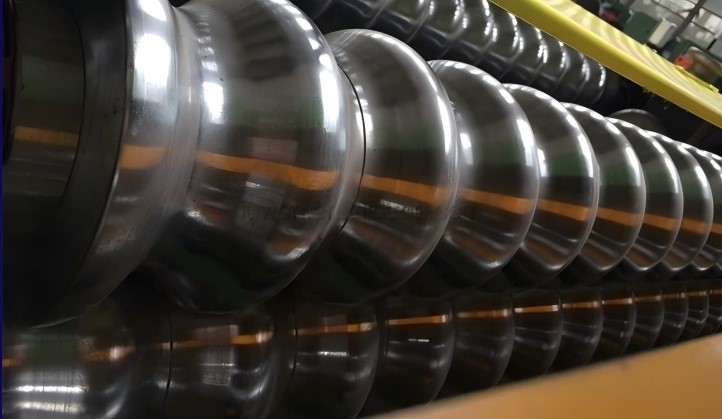

Roll Tooling & Corrugation Design
Roll tooling is designed in-house to precisely control wave geometry and material flow during forming.
Progressive corrugation forming reduces internal stress and prevents surface damage on coated sheets.
All rollers are manufactured with controlled heat treatment to ensure long service life and dimensional stability.
Parameter
|
NO |
Item |
Para |
|
|
1
|
Suitable material |
Type |
Color steel sheet |
|
Thickness (mm) |
0.5-0.8 |
||
|
Yield Strength (Mpa) |
230-350 |
||
|
Width (mm) |
1000 |
||
|
2 |
Forming Speed (m/min) |
About 20-25 |
|
|
3 |
Motor power of forming system (KW) |
3KW×2 |
|
|
4 |
Motor power of Cutting(KW) |
4 |
|
|
5 |
Motor power of decoiler hydraulic station(KW) |
2.2 |
|
|
5 |
Motor power of decoiler (KW) |
3 |
|
|
6 |
Total power(KW) |
14.2 |
|
|
7 |
Power |
AC380V,60Hz,3 Phase |
|
|
8 |
Dimension (L×W×H, m) |
16×6×2 |
|

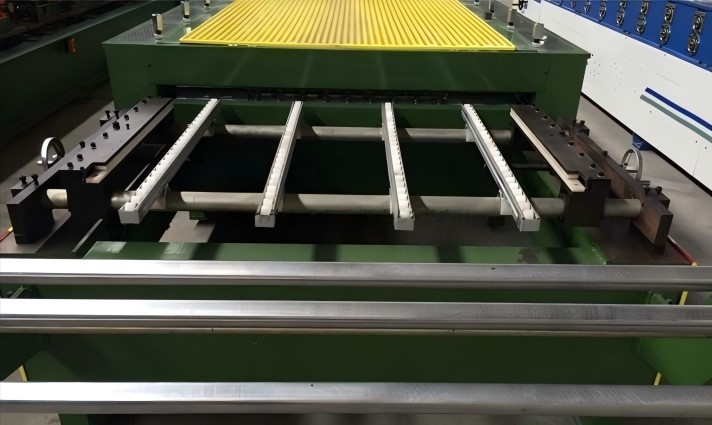

Cutting & Auxiliary Systems
The forming line can be equipped with:
Hydraulic stop-cut or servo flying cut-off systems
Sheet stacking or run-out tables
Inline punching or pre-cut units if required
All auxiliary systems are synchronized with the main forming line.
Control System & Automation
Each corrugated roll forming machine is equipped with a PLC-based control system featuring:
Digital length and quantity control
Automatic production monitoring
Fault alarm and diagnostics
User-friendly HMI interface
Control logic is customized to match the corrugation forming process.
Why Choose a Custom Corrugated Roll Forming Machine
Compared with general-purpose machines, a custom-engineered corrugated roll forming solution offers:
Better wave consistency
Higher production stability
Reduced adjustment time
Lower long-term operating and maintenance costs
