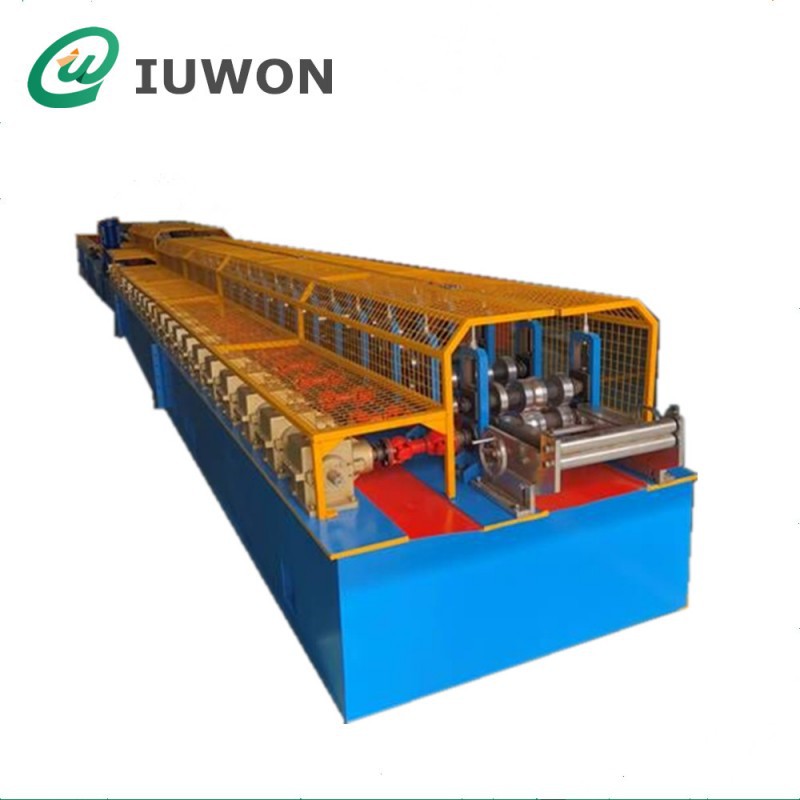

Hanghzou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rolling shutter making machine in China. With abundant experience, we warmly welcome you to buy high quality rolling shutter making machine from our factory. Good service and reasonable price are available.
High-Hardness Precision Rollers

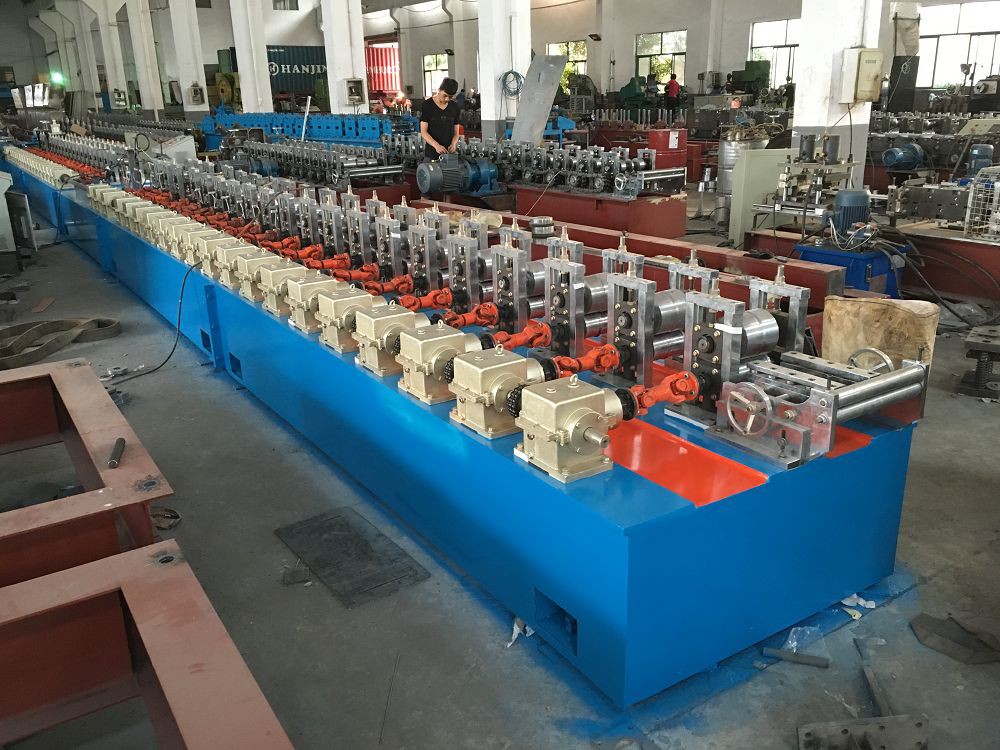

The machine is equipped with 16 to 22 forming stations. The rollers are crafted from GCr15 bearing steel, vacuum-quenched to HRC 58-62, and finished with hard chrome plating. This ensures the "interlocking hook" geometry remains perfectly consistent over millions of cycles.
Integrated Punching & Perforation Logic
We offer a built-in hydraulic punching unit that operates in perfect synchronization with the forming line.
Micro-Perforation: Creates slats with ventilation and light-filtering capabilities.
End-Lock Holes: Automatically pre-punches holes for plastic or metal end-caps, saving hours of manual labor.
Intelligent Siemens/Delta PLC System
The entire line is managed via a centralized touchscreen HMI.
Auto-Length Scaling: Program specific lengths with ±1mm accuracy.
Production Tracking: Monitor real-time output and efficiency metrics.
Language Support: Interface available in English and other major international languages.
Material Compatibility & Surface Care
Designed for versatility, our machine processes Galvanized Steel, PPGI, and Aluminum (0.6mm–1.2mm). The rollers are mirror-polished to ensure that pre-painted surfaces remain flawless and free of scuffs or pressure marks.
Frequently Asked Questions
Q: How long does it take to change from one length to another?
A: There is no downtime for length changes. You simply input the new dimensions into the PLC touchscreen, and the machine adjusts the cut point automatically for the next batch.
Q: Can this machine produce insulated (foam-filled) slats?
A: This specific machine is for single-skin slats. However, we offer specialized Double-Skin Forming Lines that integrate with a PU foam-injection system if insulation is a primary requirement.
Q: What power supply is required for this machine?
A: The standard setup is 380V/50Hz/3-Phase. We can customize the electrical system to match your local industrial voltage (e.g., 220V or 440V) at no additional cost.
Q: How do you ensure the slats interlock smoothly?
A: The "hook" part of the profile is formed through 4-5 dedicated finishing stations. This gradual forming ensures that every slat slides into the next with minimal friction but maximum security.
Q: What is the lead time and shipping process?
A: Production typically takes 45–60 days. The machine is treated with anti-rust oil, wrapped in waterproof film, and secured in a standard 20ft/40ft container for safe international transit.
