Z Purlin Roll Forming Machine

Hanghzou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of z purlin roll forming machine in China. With abundant experience, we warmly welcome you to buy high quality z purlin roll forming machine from our factory. Good service and reasonable price are available.

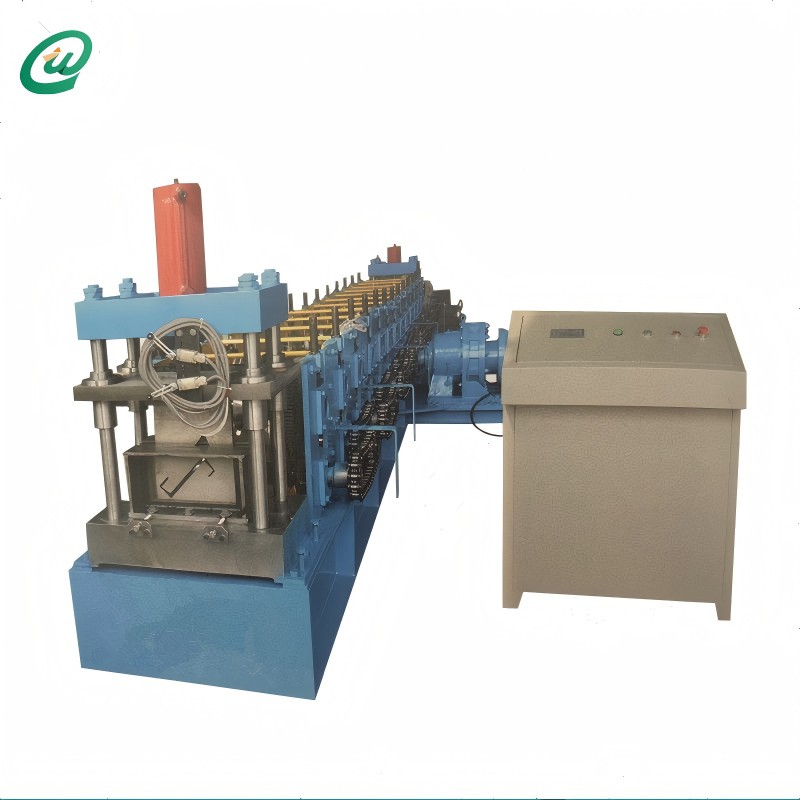

Our Z Purlin Roll Forming Machine is a professional cold roll forming equipment specially designed for the production of Z-shaped steel purlins. It integrates advanced roll forming technology, intelligent servo control, and fully automatic integrated processing, realizing continuous, high-precision, and efficient production. The machine precisely processes cold-rolled steel coils, galvanized steel coils, color steel coils, and other metal materials into standard or customized Z purlins, with the whole production process of automatic feeding, leveling, roll forming, precise length measurement, punching, and hydraulic cutting-no manual intervention required.

The equipment fully meets international and national steel structure engineering quality standards (ISO9001, CE), with stable performance and flexible configuration, suitable for enterprises of all scales. It is widely used in steel structure workshops, logistics warehouses, prefabricated buildings, agricultural greenhouses, and other fields, providing a cost-effective and high-quality production solution for global steel structure engineering projects.

Fully Automatic Production, High Efficiency & Labor Saving

Integrates automatic feeding, leveling, forming, punching, cutting, and counting into one body, realizing continuous non-stop production. The forming speed reaches 8-25m/min (stepless adjustable), which is 3-4 times higher than that of semi-automatic equipment. Only 1-2 operators are needed for on-site operation, which greatly reduces labor intensity and labor costs, and improves production efficiency and product consistency.

Intelligent PLC Control, Easy Operation & Management

Equipped with a high-performance PLC touch screen control system with a clear English interface, supporting storage of 30+ sets of Z purlin specifications and parameters. It has functions such as one-key recipe switching, automatic length preset, real-time production counting, and fault self-alarm. Ordinary operators can master the operation without professional technical training; the system also supports data export, which is convenient for production statistics and management.

Stable & Durable, Long Service Life

The machine frame is welded with high-strength thick steel plates, processed by overall aging treatment and precision machining to eliminate internal stress, ensuring strong load-bearing capacity and no deformation during long-term 24-hour continuous operation. Key components (servo motor, reducer, hydraulic pump, bearings) are selected from international well-known brands, with low failure rate, stable operation, and minimal maintenance costs, effectively extending the service life of the equipment.

1.High-strength steel frame (overall aging treatment, precision welding, anti-vibration)
2.Servo drive system + high-precision synchronous guide rail
3.PLC touch screen control system (English interface, parameter storage, fault alarm)
4.Automatic coil feeding device (3000kg loading capacity, with coil supporting frame and anti-slip device)
5.Multi-roller sheet leveling device (eliminates coil stress, ensures material flatness)
6.14-16 groups of high-precision Z purlin forming rollers (#45 steel, hard chrome-plated)
7.Automatic hydraulic punching device (adjustable hole position/spacing, with mold cooling system)
8.Precise length measurement & counting system (encoder positioning, error ≤1mm)
9.Hydraulic shearing cutting device (quick cutting, no section deformation)
10.Safety protection system (protective cover, emergency stop button, overload protection)

1.Frequency conversion drive system / full hydraulic drive system
2.Laser cutting device (high-precision, no burr, for thin sheet processing)
3.Automatic finished product stacking device (reduces manual labor, improves stacking efficiency)
4.Material thickness real-time detection system (automatic alarm for unqualified materials)
5.Remote monitoring & fault diagnosis system (real-time production data, remote maintenance)
6.Double-head hydraulic punching device (improves punching efficiency for large-batch production)
7.Anti-scratch protective device (for galvanized/color steel sheet processing)
8.Customized forming rollers (for non-standard Z purlin specifications)
9.Production data printing system (directly print production quantity/specifications)
10.Mobile control console (flexible operation, suitable for large workshop layout)

We adhere to the "Quality First, Customer Foremost" principle, and all Z Purlin Roll Forming Machines undergo strict multi-stage quality inspection before delivery, including raw material inspection, semi-finished product testing, and finished product performance testing (pressure test, precision test, continuous operation test), fully complying with ISO9001 quality management system and CE certification standards. We provide a comprehensive after-sales service system to solve all your worries about equipment use:
1.12-Month Free Warranty: Free replacement of faulty spare parts (excluding wearing parts such as rollers and seals) during the warranty period; lifelong professional maintenance service.
2.On-Site Installation & Training: Our professional technical team provides on-site equipment installation, commissioning, and operator training (including operation, debugging, and daily maintenance) until your staff master all skills.
3.24/7 Online After-Sales Support: Our technical support team responds to your questions within 1 hour; provides remote guidance for fault troubleshooting, and minimizes production downtime.
4.Long-Term Spare Parts Supply: We provide original spare parts at preferential prices for a long time, with fast global delivery to ensure the normal operation of your equipment.

If you are interested in our Z Purlin Roll Forming Machine, or need to customize non-standard Z purlin production equipment according to your steel structure engineering needs, please feel free to contact us. Our professional sales and technical team will provide you with detailed product consultation, parameter quotation, and on-site investigation services, and tailor the most suitable production solution for your enterprise to help you improve production efficiency, reduce costs, and enhance market competitiveness.
