Hanghzou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cable tray former in China. With abundant experience, we warmly welcome you to buy high quality cable tray former from our factory. Good service and reasonable price are available.
Why Choose Our Cable Tray Former
● Precision Roll Forming Technology
Engineered with multi-station roll forming structure to ensure tight dimensional tolerance and consistent tray geometry across long production runs.
● Heavy-Duty Frame Structure
Machine base is fabricated with high-strength welded steel and stress-relief treatment, ensuring long-term stability under continuous operation.
● Flexible Profile Customization
Supports production of:
Cable ladder tray
Perforated cable tray
Solid cable tray
Wire mesh tray (optional configuration)
|
Item |
Para |
|
|
Suitable Material |
Type |
Hot rolled steel coil Galvanized steel coil |
|
Thickness |
1.8mm -2.0 mm |
|
|
Yield Strength |
235-300MPa |
|
|
Coil Width |
194mm-408mm |
|
|
Producing Speed |
About 6 m/min (Including punching time and cutting time) |
|
|
Motor power of leveling device |
5.5 KW |
|
|
Motor power of servo feeding device |
5.5 KW |
|
|
Motor power of 110 tons punching device |
11 KW |
|
|
Motor power of 250 tons punching device |
22 KW |
|
|
Main motor power |
11KW |
|
|
Roller change motor power |
1.5KW*2 |
|
|
Hydraulic station power of Decoiler |
3KW |
|
|
Hydraulic station power of Cutter |
5.5KW |
|
|
Total power |
66.5KW |
|
|
Power |
AC380V,50Hz,3 Phase |
|
|
Dimension (L×W×H, m) |
About 30×4×4 |
|
Key Advantages of Our Cable Tray Forming Machine
● High Precision Roll Forming System
Our roll forming machine for cable tray adopts multi-station forming technology to ensure uniform profile shaping and tight tolerance control, which is critical for large-scale cable tray production.

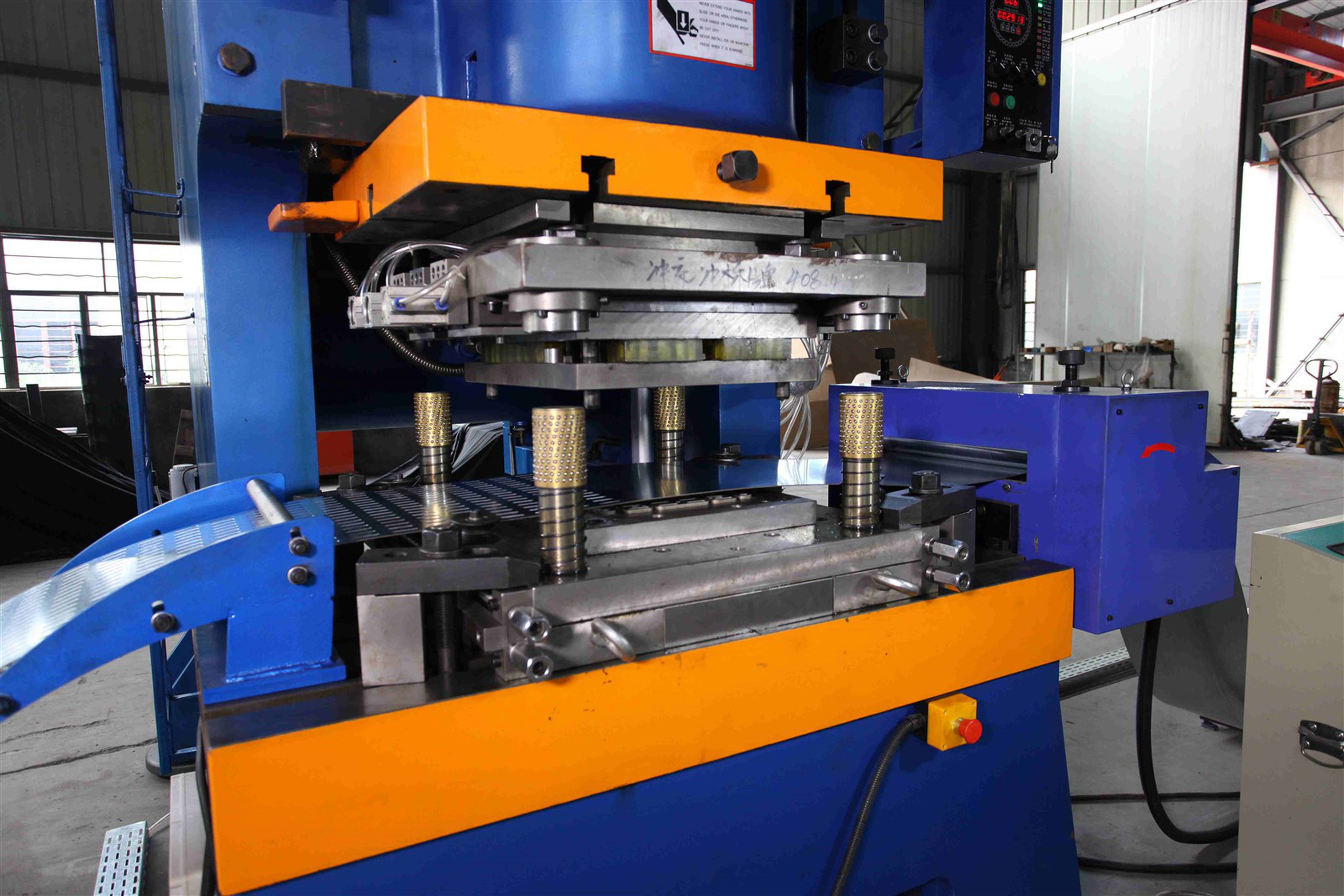

● Inline Servo Punching Technology
This perforated cable tray forming machine is equipped with a high-speed servo punching system, allowing precise hole patterns without secondary processing.
Supports:
Round holes
Slotted holes
Custom cable tray punching layouts
● Fully Automatic Operation
The automatic cable tray machine is controlled by PLC with touch screen interface, enabling real-time monitoring and easy parameter adjustment, reducing labor cost and improving production efficiency.
● Heavy-Duty Machine Structure
Designed for long-term industrial use, this steel cable tray machine features a reinforced frame and precision-machined rollers to ensure durability and consistent performance.

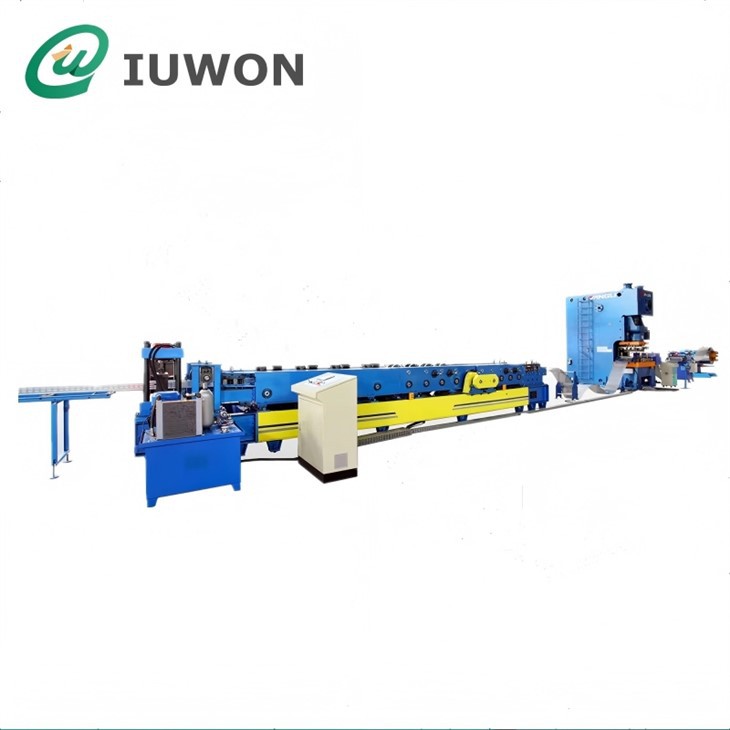

Complete Cable Tray Production Line
Our cable tray production line is engineered for full automation and high productivity. The standard configuration includes:
Hydraulic decoiler
Leveling unit
Servo punching machine
Cable tray roll forming machine

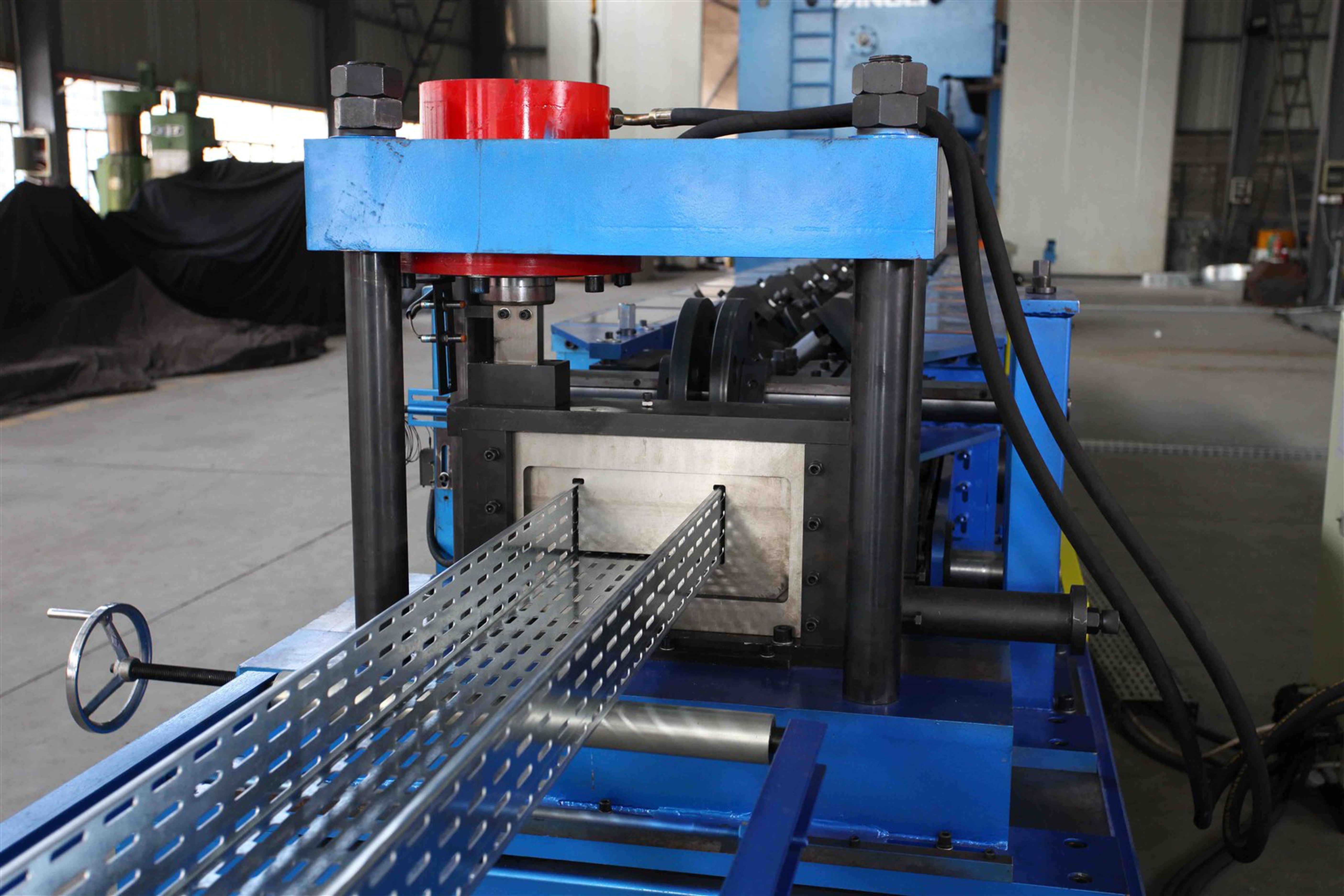

Hydraulic cutting system
Automatic stacking system
Optional systems:
Embossing unit
Quick-change roll forming system
Adjustable width system
This integrated cable tray making machine line ensures seamless production from raw material to finished product.
Applications of Cable Tray Machine
The cable tray forming machine is essential equipment for industries requiring reliable cable management solutions:
Electrical & Construction Industry
Used for manufacturing cable trays for commercial buildings and infrastructure projects.
Data Center Engineering
High-precision cable tray production ensures organized and efficient cable routing.
Industrial Facilities & Power Plants
Heavy-duty cable trays produced by this ladder cable tray machine meet demanding industrial conditions.
Infrastructure Projects
Widely used in airports, rail transit systems, and smart city developments.
Cost Efficiency & Production Benefits
Using an automatic cable tray machine significantly improves manufacturing efficiency:
Continuous production with minimal downtime
Reduced labor costs through automation
High consistency in cable tray quality
Lower material waste
Faster delivery cycles
Compared with traditional fabrication, a modern cable tray roll forming machine provides a faster return on investment.
Custom Cable Tray Forming Solutions
As an experienced manufacturer of cable tray forming machines, we provide customized solutions based on:
Cable tray profile drawings
Punching requirements
Production capacity
Local electrical standards
Whether you need a ladder cable tray machine or a perforated cable tray forming machine, we can tailor the entire production line to your needs.
20+ Years of Manufacturing
Excellence in Roll Forming
We specialize in designing and producing high-performance cable tray roll forming machines for global markets, delivering complete production solutions rather than just equipment.
Installation
On-site commissioning and full technical support.
Training
Operator training to ensure production efficiency.
Spare Parts
Reliable supply of genuine precision components.
Lifetime
Lifelong technical assistance and line optimization.
"We ensure your cable tray production line operates efficiently from day one."
Beyond Manufacturing,
Engineering Excellence.
Secure a high-performance cable tray production line with 10+ years of technical expertise. Custom-engineered solutions delivered globally with lifetime support.
